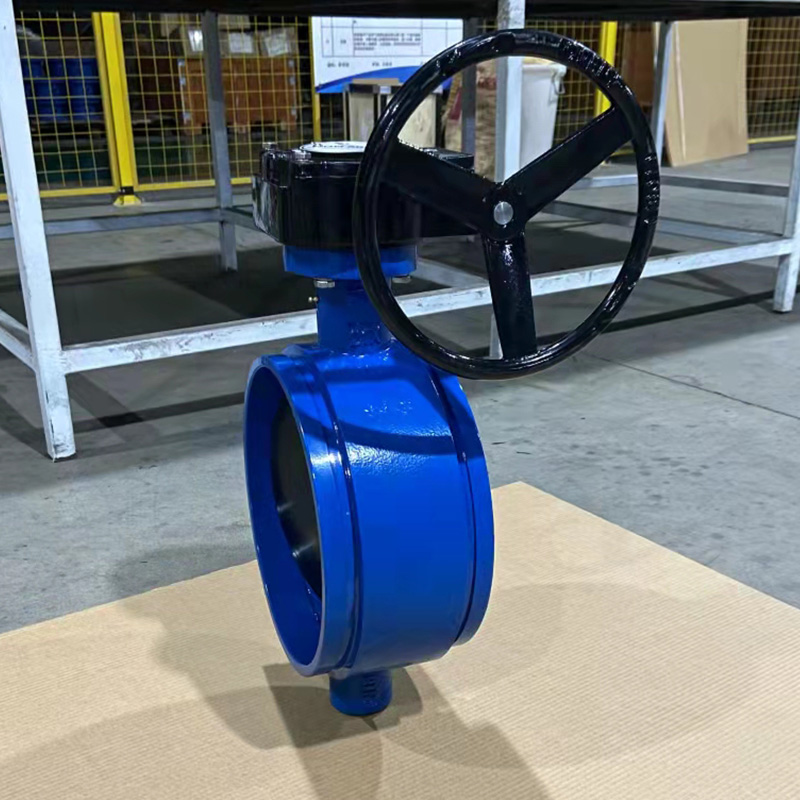

Ductile Iron Gearbox Grooved End Butterfly Valve
A grooved end butterfly valve is used in piping to control fluid flow. It connects easily via grooved coupling, ideal for quick setup and maintenance.
A grooved end butterfly valve is a type of valve commonly used in piping systems to control the flow of fluids. This particular style of butterfly valve is characterized by having grooved ends, which allow for easy connection to similarly grooved piping through a method known as grooved coupling. This connection method provides the convenience of quick installation and disassembly, making the butterfly valve more user-friendly for setup and maintenance.
Grooved end butterfly valves are typically used in fire protection systems, water supply systems, and air conditioning systems, among others. They are popular due to their ease of installation, simple maintenance, and effective sealing performance. These valves can be operated by a handle, electrically, or pneumatically, catering to various operational needs and working conditions.
| SIZE |
| DN50 |
| DN65 |
| DN80 |
| DN100 |
| DN125 |
| DN150 |
| DN200 |
| DN250 |
| DN300 |
Grooved End Butterfly Valve Drawing
STANDARD MATERIALS OF MAIN PARTS
| ITEM | PART NAME | MATERIAL |
|---|---|---|
| 1 | Body | DI |
| 2 | Seat | EPDM |
| 3 | Shaft | SS416 |
| 4 | Disc | DI |
| 5 | Pin | SS416 |
STANDARD MATERIALS OF MAIN PARTS
Type: Clamp
Face to Face: API609,BS5155,DIN3202,ISO5752
Flange: DIN,BS,UNI,ISO, ANSI, AS,JIS
Mounting Flange: ISO5211
Working Pressure: PN16(200PSI)
Application: HVAC,Water Supply&Sewage, Food&Beverage,Chemical/ petrochemical/processing, Power and Utilities,Paper and Pulp,Ship Building.
Features:
1. Small in size, light in weight, easy installation and maintenance.
2. Simple and compact construction, quick 90 degree on-off operation.
3. Minimized operating torque, energy saving.
4. Flow curve tending to straight line, excellent regulation performance.
5. Long service life, standing the test of tens thousands opening/closing operations.
6. Wide selection of materials, applicable to various medium.
Application:
Chemicals, air, water, steam, oil, acids, salts ect
