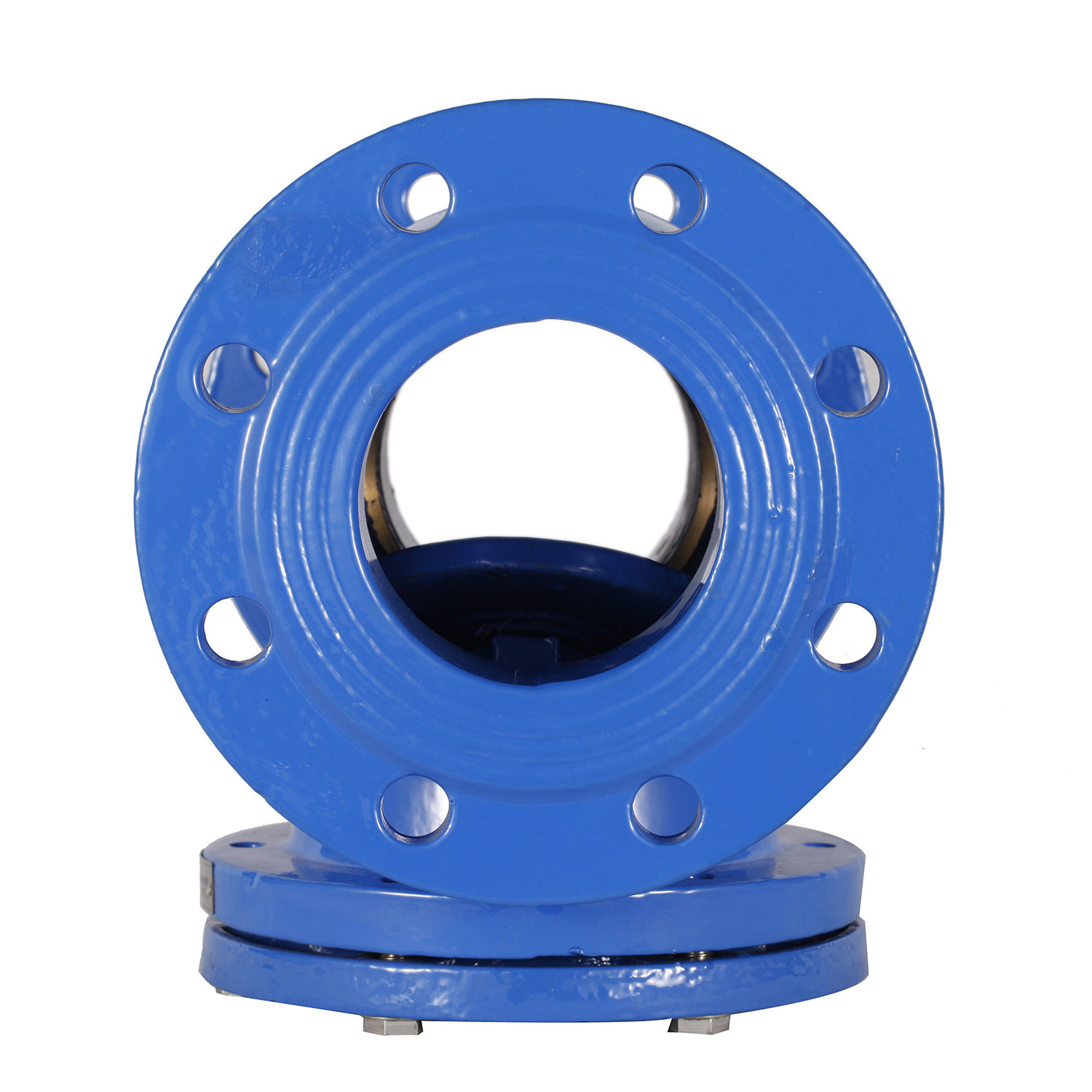

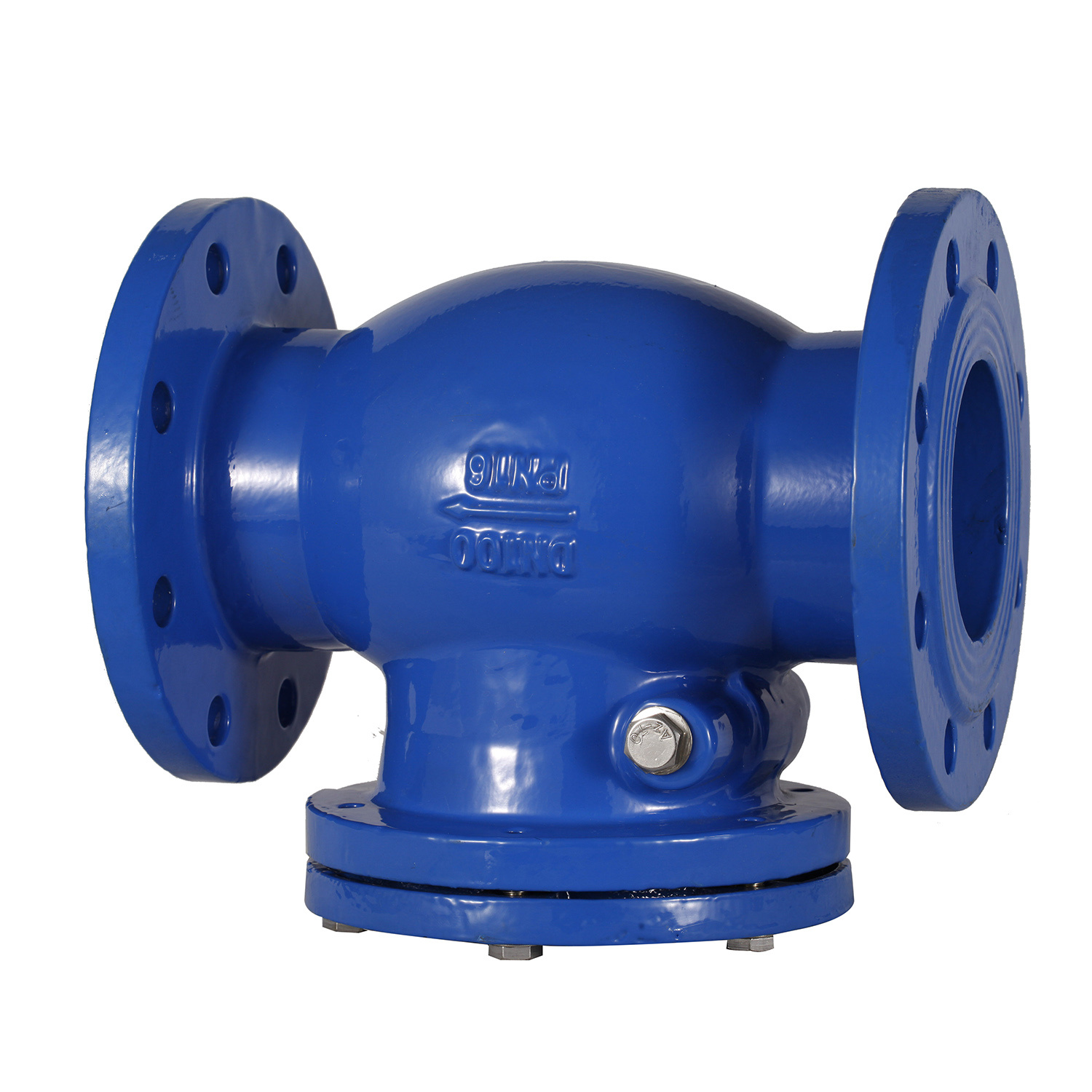

BS5163 flanged end swing check valve

1. Small in size, light in weight, compact in structure,easy in maintenance.2. Two torsion springs are used excreting on each of the pair valve plates,which close the plates quickly And automaticall

Quantity:
-
+
SUBMIT RFQ
Product Details
  • 1. Small in size, light in weight, compact in structure,easy in maintenance.

  • 2. Two torsion springs are used excreting on each of the pair valve plates,which close the plates quickly

  •    And automatically.

  • 3. The quick-close action prevents the medium from flowing back and eliminates water hammer effect.

  • 4. Short body structure length and good rigidity.

  • 5. This valve is tightly sealed, without leakage under the pressure water test.

  • 6. Safe and reliable in operation,high interference-resistance.


  • Specifications:

  • Nominal pressue (MPa)

    1.0

    1.6

    Nominal diameter(mm)

    50-600

    50-600

    Test pressure

    Shell

    1.5

    2.4

    (MPa)

    Seal

    1.1

    1.76

    Applicable temperature

    150

    Applicable medium

    Fresh water, Sewage, Sea water, Air, Vapor, Food, Medicine, Oils, Acids,
    Alkalis, etc.

    Operating mode

    manual, worm gear, pneumatic, electric, etc.

  •

  • Standards:

  • Design & Manufacture

    Flange Connection

    Face to Face Dimension

    Test & Inspection

    DIN3202

    DIN2533&EN1092

    DIN3202 F6


  •

  •  Features:

  • 1. Small in size, light in weight, compact in structure,easy in maintenance.

  • 2. Two torsion springs are used excreting on each of the pair valve plates,which close the plates quickly

  •    And automatically.

  • 3. The quick-close action prevents the medium from flowing back and eliminates water hammer effect.

  • 4. Short body structure length and good rigidity.

  • 5. This valve is tightly sealed, without leakage under the pressure water test.

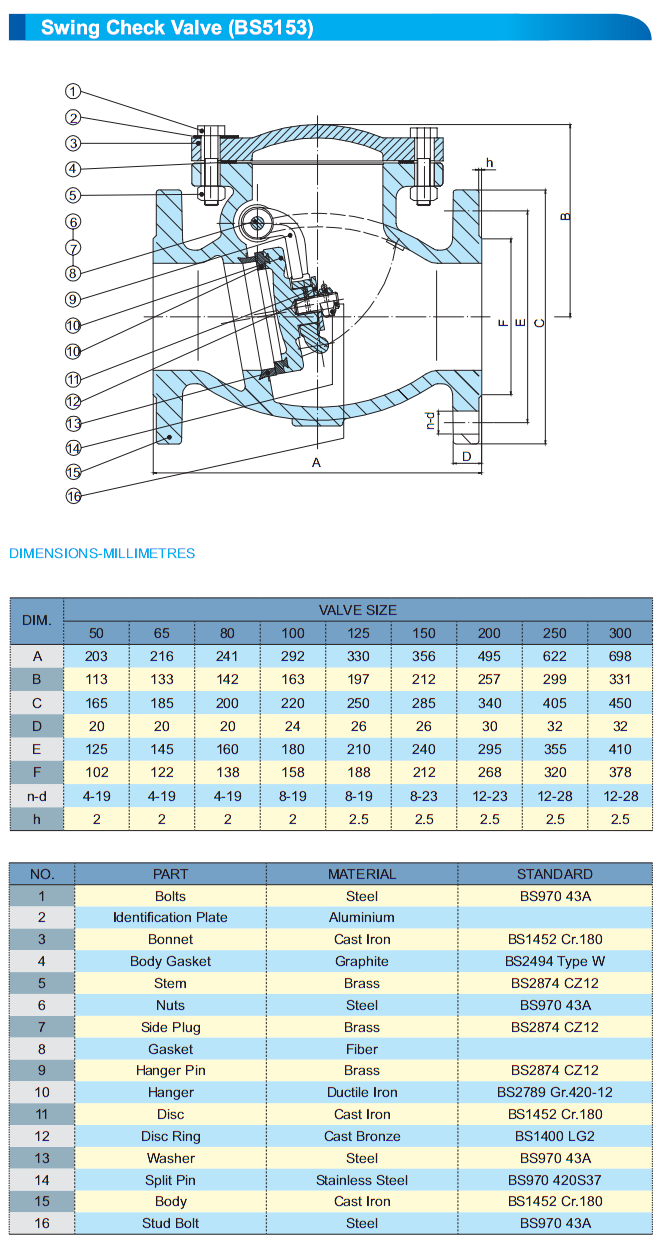

  • 6. Safe and reliable in operation,high interference-resistance.swing check valve (bs5163).png

  •
