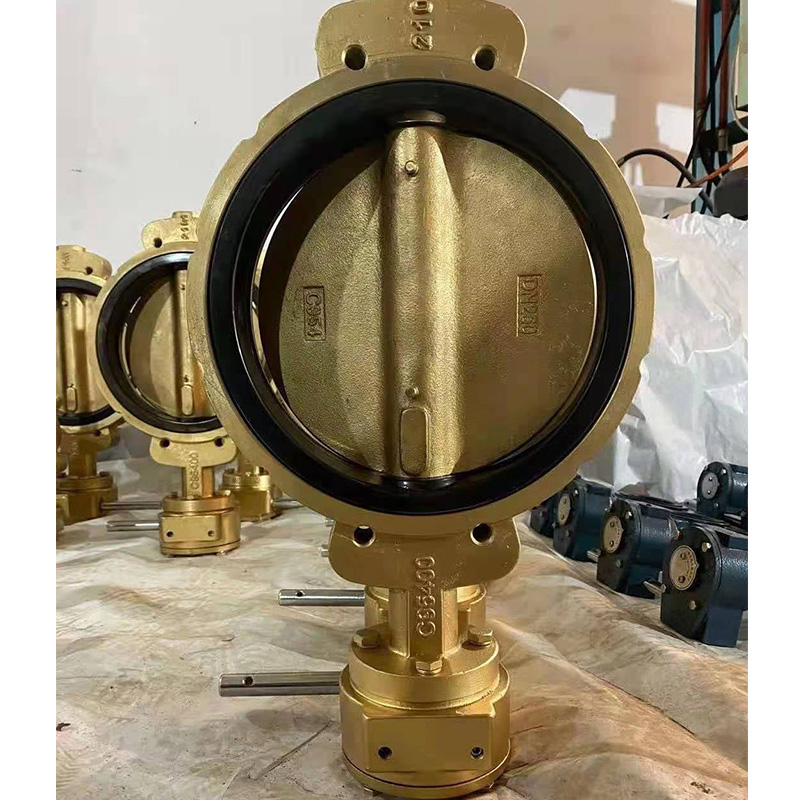

API609 DN100 Aluminum Bronze Wafer Butterfly Valve

The Aluminum bronze butterfly valve excels in high-pressure, high-temperature environments with low reactivity. Its superior quality and strength, along with wear and corrosion resistance, suit aquatic and marine settings. Cost-efficient, with excellent thermal conductivity, it saves money and accelerates heat transfer. In summary, it‘s the reliable, efficient choice for extreme conditions.

Product Details


Aluminum bronze butterfly valve offers a great selection of advantages for applications that require high pressure, extreme temperatures and an overall low reactivity rate. These valves are made with superior quality and strength, have great resistance to wear and corrosion, are low reactivity making them suitable for aquatic and marine settings, help you save money in the long run due to their cost efficiency and offer excellent thermal conductivity which helps reduce power consumption and accelerate heat transfer processes. In short, aluminum bronze butterfly valve are the perfect choice for reliability and efficiency under extreme conditions.


Aluminum bronze butterfly valves are an excellent choice for applications that require extreme levels of durability and corrosion resistance. These valves offer superior strength and can withstand temperatures up to 1000°F (538°C), which makes them suitable for hot environments such as power plants and refineries. Moreover, these valves can take on extreme pressure up to 10 bars, making them a great solution for high-pressure systems. Their low reactivity also makes them safe for use in aquatic and marine environments without causing any environmental damage. In addition to their impressive performance, aluminum bronze butterfly valves require less maintenance due to their resistance to wear and corrosion, thus extending their lifespan significantly. All these qualities make aluminum bronze butterfly valves an ideal choice for projects that demand reliability and longevity.


BodyAluminum Bronze
ShaftStainless Steel 416,316,304,Aluminum Bronze
DiscDuctile Iron+Ni,CF8,CF8+PTFE,CF8M,CF8M+PTFE,Bronze




Nominal Pressure

PN10/16, 150-300LB

Working Temperature

-30。c - 135。C

Suitable Media

Chemicals, air, water, steam, oil, acids, salts ect


Design standard

API609, ANSI16.34, JISB2064, GB T12238

Face to Face

API609, DIN3202, ISO5752, BS5155

Flange drilling

DIN2501 PN10/16, ANSI 125/150/300, BS4504, JIS10K

Top Flange


Test Inspection




 IMGV---Tianjin Union Valve Co., Ltd. is a professional valve manufacturer with high quality products and internal management standards. It has a high reputation in the foundry industry. Our company has a modern factory, advanced manufacturing processing and testing equipment, strong technical force.DN50 DN100 Ductile Iron Gearbox Grooved End Butterfly Valve

We have More than 200 employees, more than 30 years of professional experience, skilled technicians and operators, the products passed ISO 9001:2015 and CE certification, our main products are concentric butterfly valve,eccentric butterfly valve, triple-eccentric butterfly valve, soft seat gate valve, ball valve, check valve, Y-strainer, rubber joints, etc. With product quality and perfect service system, it is sold in dozens of countries and regions such as Europe, America, Southeast Asia, Middle East, Australia, North Africa, South Korea, Hong Kong,Taiwan and so on. Our company's purpose is: professional and technical support, perfect after-sales service!
We welcome you to contact us for more information and look forward to working with you!

DN50 DN100 Ductile Iron Gearbox Grooved End Butterfly ValveDN50 DN100 Ductile Iron Gearbox Grooved End Butterfly Valve DN50 DN100 Ductile Iron Gearbox Grooved End Butterfly Valve

1. Q: Are you a manufacturer or trading company ?

A: we are valve manufacturer and factory ,and not trading company.

2. Q: Do you have agent or representative abroad?

A: We dont have agent abroad,please contact us to purchase valves


3. Q: What's your product range?

A: We can produce Butterfly valve,Gate valve,Check valve,Y strainer,Rubber Joint


4. Q: Is there any stock in your factory? and how about your lead time?

A: We stock valves with normal sizes. The lead time depends on your quantity,

generally 30-35 days.

5. Q: Which countries do you export to ?

A: We export directly to vast majority of countries in the world.

6. Q: What certificates will you provide ?

A: We can provide CE/ ISO / WRAS

7. After-sales service
18 monthes year warranty for all kinds of products
As an experienced manufacturer, you can rest assured of the quality and sales service

8. Payment
T/T, L/C, OA, D/P, D/A

Transported by DHL, UPS, EMS, Fedex, SF, by Air, by Sea

10. Do you provide free sample?
Free sample is ok for us.

11. Do you accept custom design on size?
Yes, if the size is reasonable
