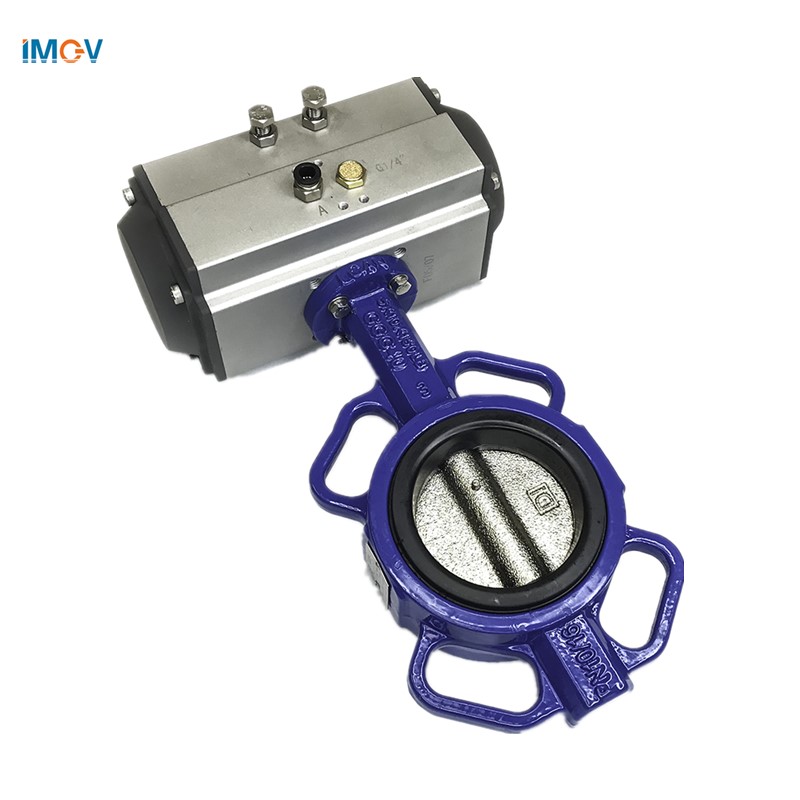

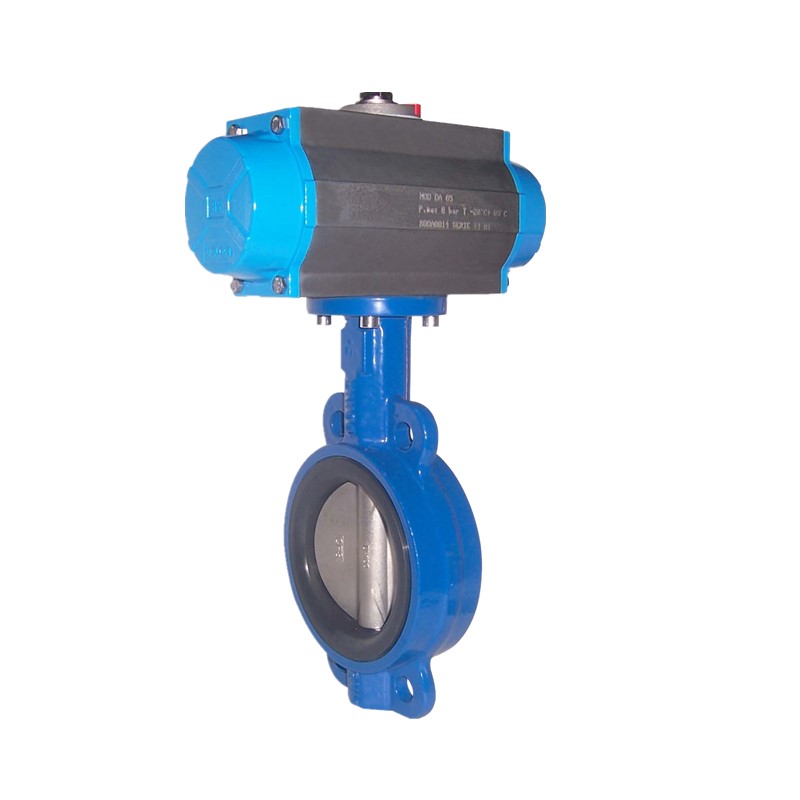

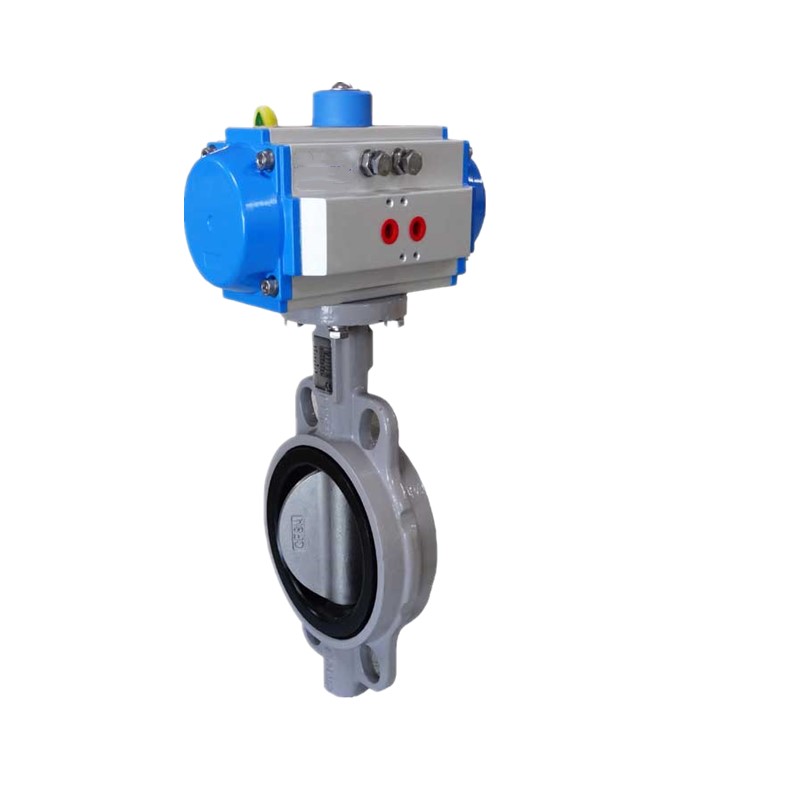

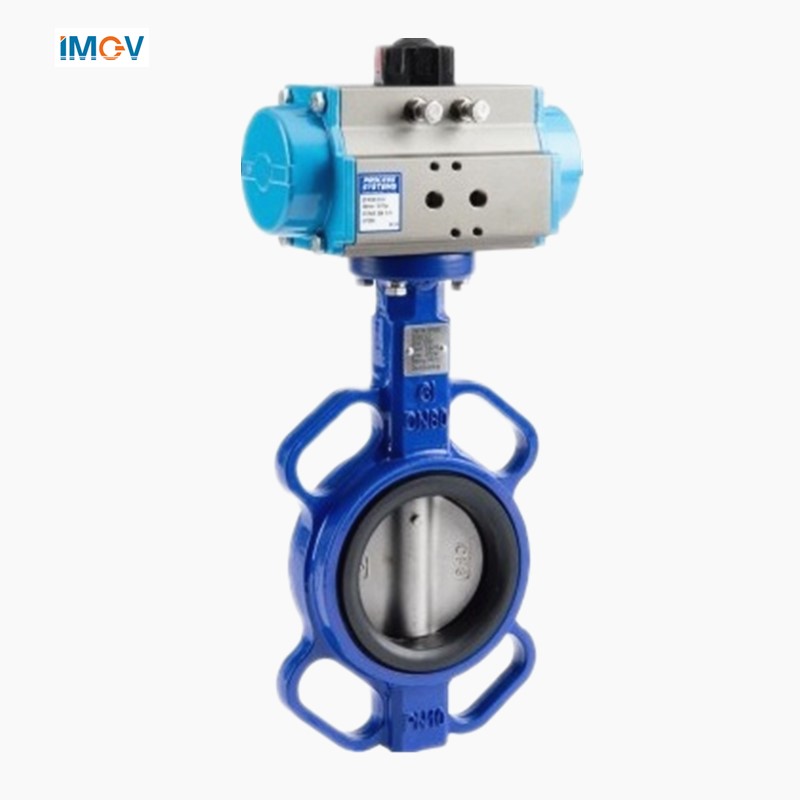

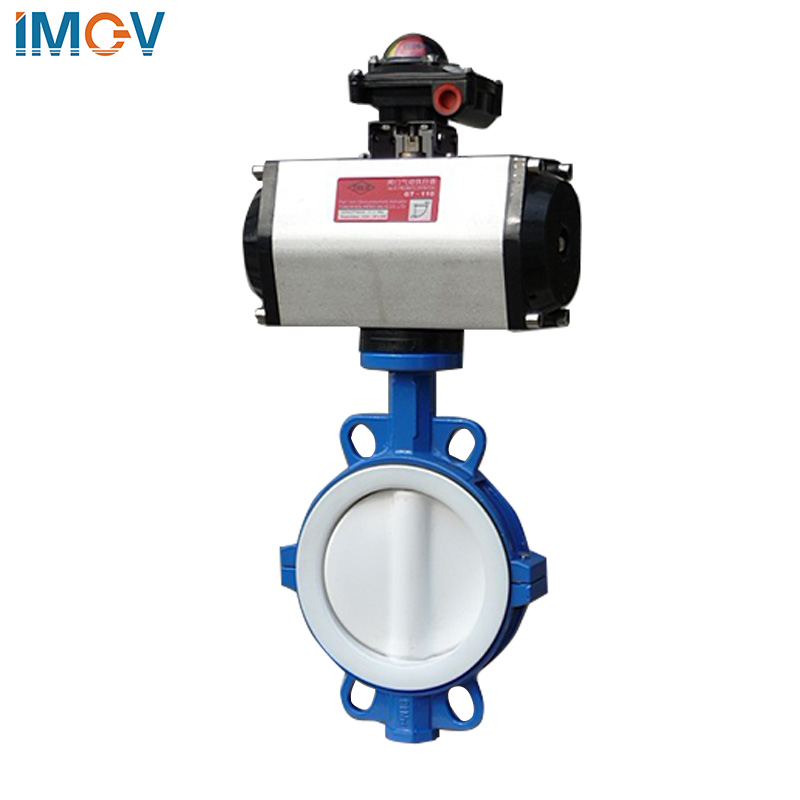

Pneumatic Butterfly Valve
Pneumatic butterfly valve with air actuator for fast, reliable flow control. Ideal for water, chemical, and automation systems in industrial environments.
Introduce
The Pneumatic Butterfly Valve integrates a butterfly valve body with a pneumatic actuator, enabling rapid and reliable valve operation through compressed air. It is well-suited for applications requiring fast response, high-frequency actuation, or explosive-proof environments. Available in wafer, lug, and flanged types, pneumatic butterfly valves are often configured with solenoid valves and positioners for precise automation.
Function
Pneumatic butterfly valves are used to open, close, or throttle fluid flow by converting compressed air into mechanical motion. The actuator turns the disc to adjust flow, offering fast and accurate control. Ideal for industrial systems such as water treatment, chemical processing, and air handling, these valves reduce manual workload and support automation. Their robust design ensures reliability in demanding, high-cycle environments.

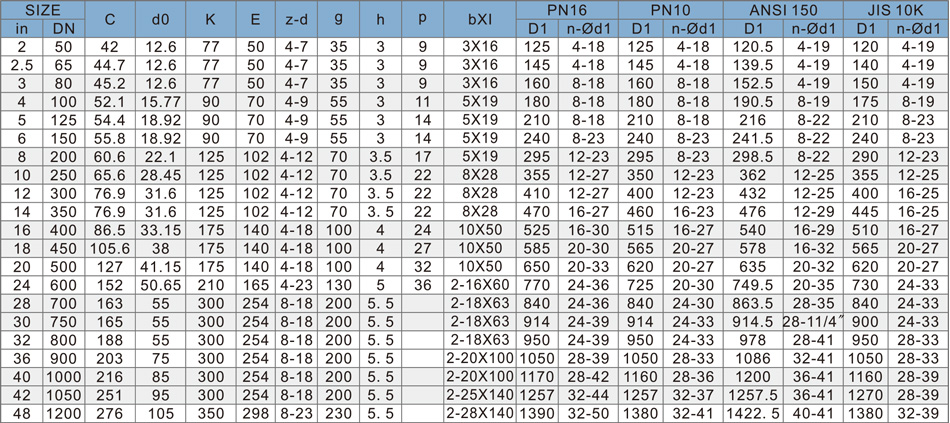

Specification：
| Type | Wafer |
| Face to Face | API609,BS5155,DIN3202,ISO5752 |
| Flange | DIN,BS,UNI,ISO,ANSI,AS,JIS |
| Mounting Flange | ISO5211 |
| Working Pressure | PN16(200PSI) |
| Application | Water works,Public facilities,Building Industry,Petrolem,Chemical,Steel,Metallurgy,Paper Making Industry,Foods,Beverage |
Features:
1.Outstanding bidirectional sealing, low torque,
2.Linear flow, excellent regulation,
3.Simple flange installation, diverse sealing options,
4.Integrated seat ring for longevity,
5.Robust corrosion resistance, suitable for cutting and trimming.
